LTBA - Ataturk Approach Adventure
© 2004 Perfect Flight - Created by Marco Martini
All rights reserved

ESTIMATED TIME TO COMPLETE
20 minutes

AIRPORT FACILITY
Ataturk (LTBA)



ATIS  128.200 MHz
Clearance Delivery  121.700 MHz
Ground  121.800 MHz
Ground  121.900 MHz
Tower  118.100 MHz
Tower  121.800 MHz
Approach  120.500 MHz
Approach  121.100 MHz
Approach  126.400 MHz
Approach  127.150 MHz

Latitude  N40*58.57'
Longitude  E28*48.83'
Elevation  163 FT



Runway Length Surface ILS_ID ILS_Freq ILS_Hdg
18L 9813 Concrete IISB 111 100 175
36R 9813 Concrete IYES 111 300 355
6 7503 Concrete IIST 110 300 055
24 7503 Concrete IATA 111 900 235

Approach plates
ARR RWY 06
ARR RWY 18

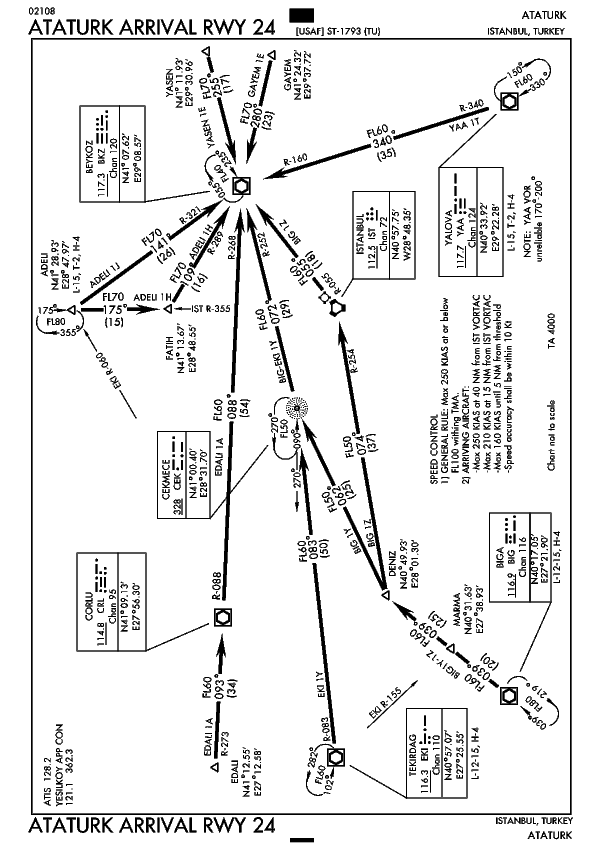

ARR RWY 24

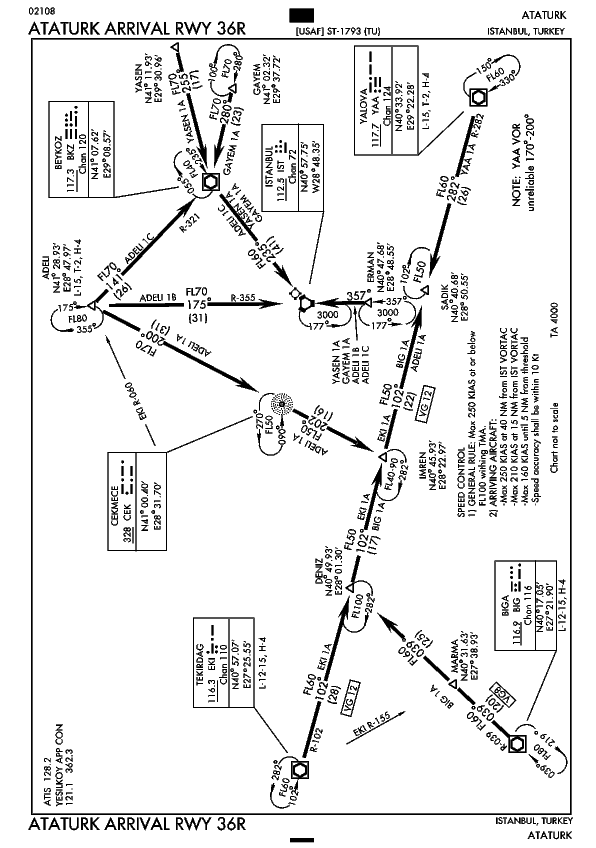

ARR RWY 36

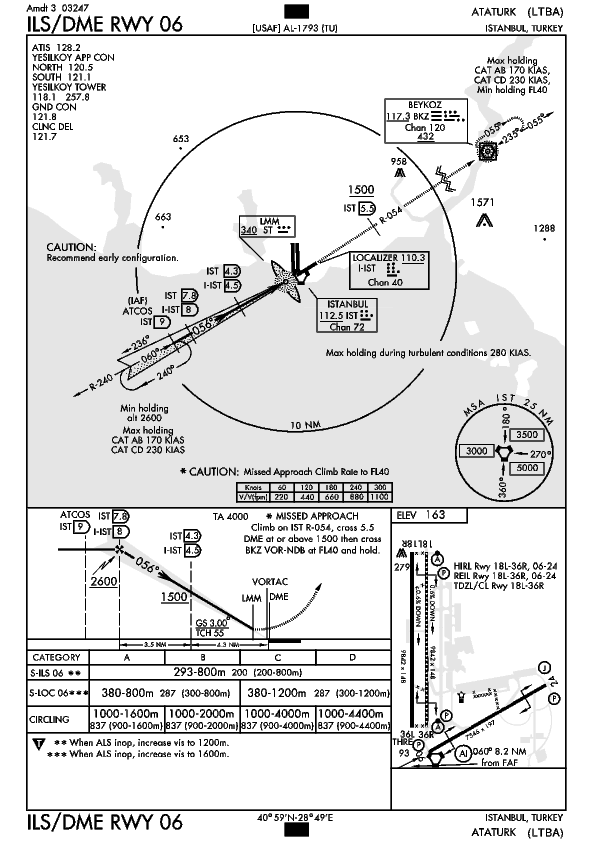

ILSDME RWY 06

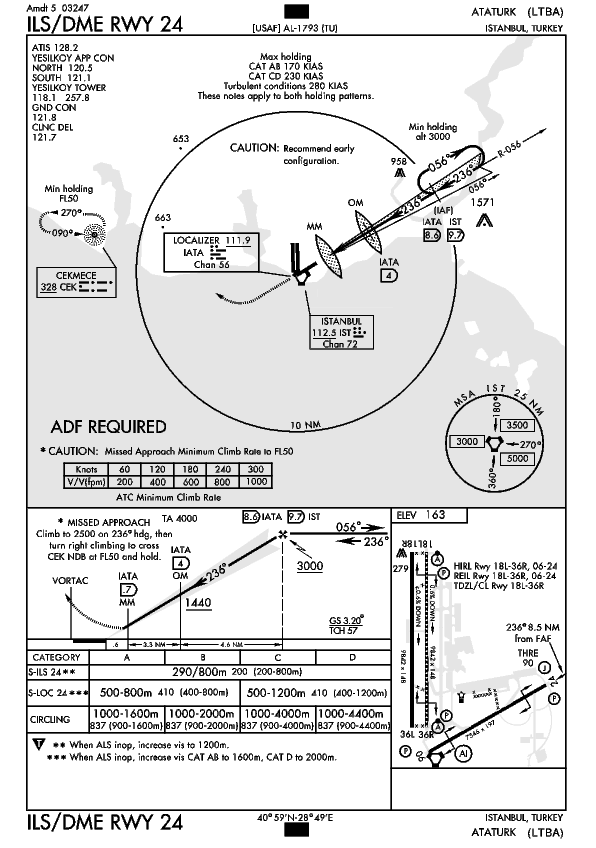

ILSDME RWY 24

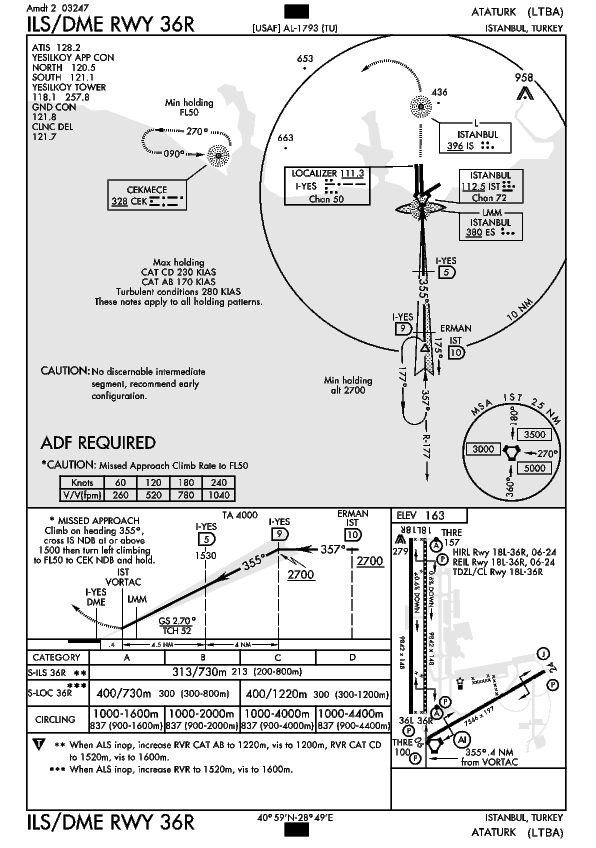

ILSDME RWY 36

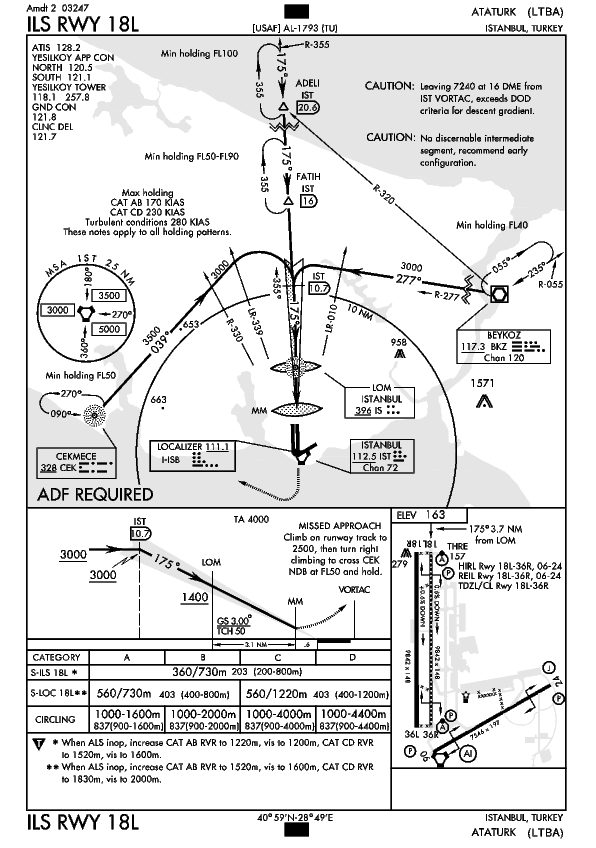

 ILS RWY 18L

ISTANBUL (IST)
Type: VOR/DME
Class: High altitude
Frequency: 112.50 MHz
Morse: . . . . . -

ATATURK (ISTANBUL) (ST)
Type: NDB
Class: MH
Frequency: 340.0 kHz
Morse: . . . -

YESILKOY (ISTANBUL) (ES)
Type: NDB
Class: MH
Frequency: 380.0 kHz
Morse: . . . .

ATATURK (ISTANBUL) (IS)
Type: NDB
Class: MH
Frequency: 396.0 kHz
Morse: . . . . .

ABOUT THE FLIGHT
Fly and land to LTBA - Ataturk. Follow the ATC instructions. Head to the airport, land on the assigned runway, and taxi to the parking area of your choice.

There is no flight plan associated with this Flight, so no course line will show up in the GPS and there won't be any information in the Navigation Log.


NOTE
For variety, you can re-fly this Flight with a different aircraft, at a different time or in a different season or with different weather conditions. For maximum realism, use the Real-World Weather feature.
